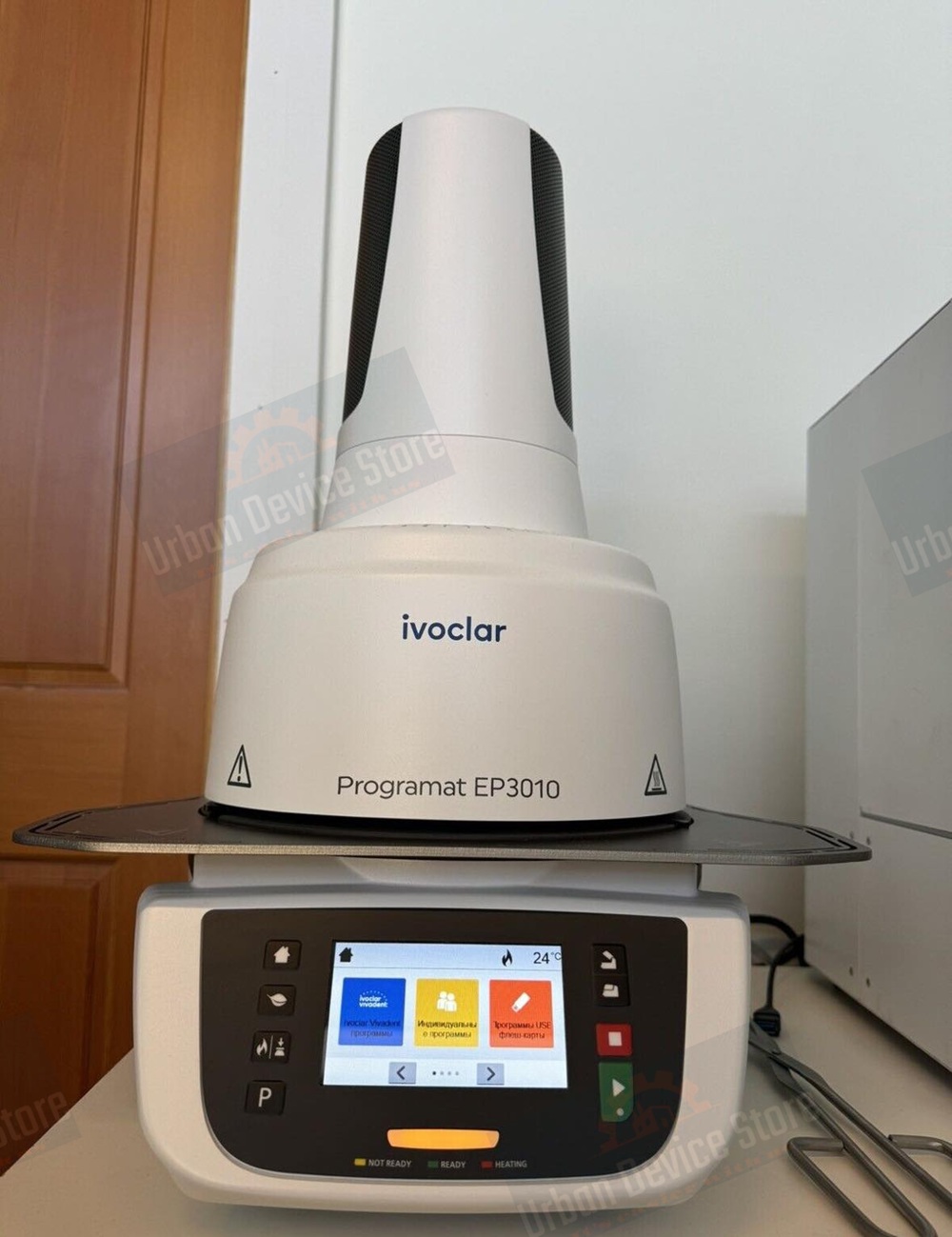

Ivoclar Programat EP 3010 Ceramic Furnace

Description

Ivoclar Programat EP 3010 Ceramic Furnace

Ivoclar Programat EP 3010 Ceramic Furnace is a compact combination furnace of the latest generation of the Programat series and may be used as both a press and a ceramic furnace. It is characterized by cost effectiveness and high-quality press and firing results. In addition, the Programat EP 3010 is optimally coordinated with Ivoclar Vivadent press ceramic materials such as IPS e.max Press.

Designed to be simple to use with a menu-based touchscreen control, the Programat EP 3010 features a QTK2 heating muffle in combination with the SiC bottom reflector for optimized heat distribution throughout the firing chamber. This allows for more accurate pressing, which is further aided by an electronic press drive and force sensor, as well as an Integrated Crack Detection System which stops the process if a crack occurs in the investment ring. Autocalibration and simple software updates as well as power-saving technology, make this furnace as reliable as it is simple and effective.

Advantages:

Fully automatic press function (FPF) for optimal press results;
SiC base reflector for a homogeneous heat distribution
Precise control of the press plunger with Electronic press drive
Crack detection system (CDS)
Optical status display (OSD) informs about the actual operational status by using different colors
enables a very accurate calibration
40 % less power consumption Energy-saving technology
USB stick for Easy software updates
Remote maintenance via data file

Features

Optical Status Display (OSD)
Power Fail Save System bridges power interruptions
300 individual firing programs and 20 individual press programs
Large cooling tray with separate cooling grid
Integrated firing tong holder

Removable furnace head for easy transportation and maintenance.

FPF function: Fully automatic Press Function for optimum press results. Programs are optimally coordinated with Ivoclar Vivadent materials. QTK2 muffle technology with SiC bottom reflector for homogeneous heat distribution. Colour touch screen and proven membrane-sealed keypad for easy operation. Electronic press drive with force sensor produces high-quality press results. No compressed air connection required. Crack Detection System detects cracks in the investment ring. Easy and automatic temperature calibration at two reference points (ATK2).

Simple software update via USB flash drive. Remote diagnosis function via data file for optimum support by a service centre.

Broad range of programs: 300 individual firing and 20 individual press programs. Power Saving Technology for power-saving operation.

Package:

Programat EP 3010.
Power cord.
Vacuum hose.
Programat firing tray kit 2.
Automatic Temperature Checking Set ATK2 (test set).
USB download cable.
Cooling grid.
Various accessories.
Power cable
vacuum tube
cooling tray
SiCAufnahmeplatte
Automatic Temperature ATK2 (test set)
Spare fuses
Programat USB stick
Display cleaning cloth
Chuck holder
